flex banner printing machine cena K3204I

flex banner cena štampača
Specifikacije


Usage:Paper Printer, advertsing printer
Tip ploče: inkjet štampač
Tip: Inkjet Printer
Stanje: Novo
Automatski razred: Automatski
Voltage:AC220V 50HZ
Dimensions(L*W*H):L5200mm W950mm H1500mm 640kg
Weight:640kg
Number of Printhead:12 Heads
Maximum Print Width:3200mm 125.9 inch
Print speed:340 sqm/hr
Printhead:SPT 510/35pl
Ink Type:Icontek sk4 ink
Maximum Media Width:3300mm 129.9 inch
Media Type:Vinyl,Flex,Polyester,Film,Window Film,pp,pvc,etc
RIP Software:Maintop, PhotoPrint, UltraPrint
Ink Supply System:Low Ink Detector, Auto or Manual Ink Supply System
Ink Color:4Color C M Y K
Pružena usluga nakon prodaje: Inženjeri dostupni za servisiranje mašina u inozemstvu

Tehnički parametri


model
WER-K3204I
printhead
SPT head
number of printhead
12 pcs
printhead model
SPT-510/50pl
printhead rank
4×3
print mode
brzina
high speed mode
340sqm/h
standard mode
220sqm/h
high quality mode
170sqm/h
ink type
solvent ink
ink color
(C,M,Y,K)
ink supply system
low ink detector, auto or manual ink supply system
maximum media width
3300mm
maximum print width
3200mm
meda type
vinyl,window film, polyester, flex, back-lit film, etc
auto media feeding system
max. media weight 150kg
auto cleaning system
positive pressure cleaning, anti clogged flash function&capping system
pre heating & drying system
equiped with drying system optional; fan plus infra red heating system optional
print interface
USB2.0
printhead height
above media 2 to 6mm adjustable
RIP software
Wasatch, Maintop ,Photoprint, Ultraprint
input power
AC220V 50HZ
operation environment
temperature20°C--28°C, humidity40%--60%
machine dimension
L5,200mm×W950mm×H1,500mm 640kg
package dimension
L5,400mm×W1,150mm×H1,650mm 950kg



Suitable Print Media


Widely used in advertising industry, suitable for printing in Vinyl, Sticker, Flag, Flex Banner, Polyester, Back-Lit Film, Window Film, etc Roll Media or Sheet Media

Srodni proizvodi

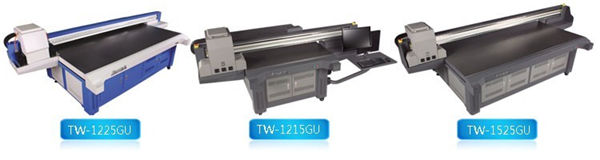

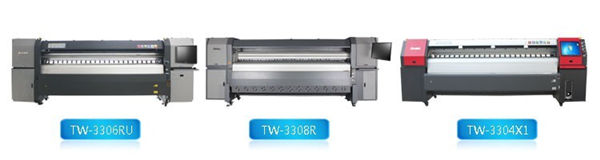

1.Digital Inkjet Printers
1)Eco Solvent Printer: 1.6m, 1.8m, 3.2m
2)Sublimation Printer: 1.6m, 1.8m, 3.2m
3)Directly Textile Printer: TW-1800J3
4)Roll to Roll & Flatbed UV Printer: 1.8m,3.2;m
2.Printhead Boards
Mainboards: SPT510 Print-head Board, SPT Interface Board, Power Convert Board, Printhead Board.
3.INK of Infinity SK-4 ink, eco solvent ink, sublimation ink, water based ink, Icontek ink, Phaeton ink etc.

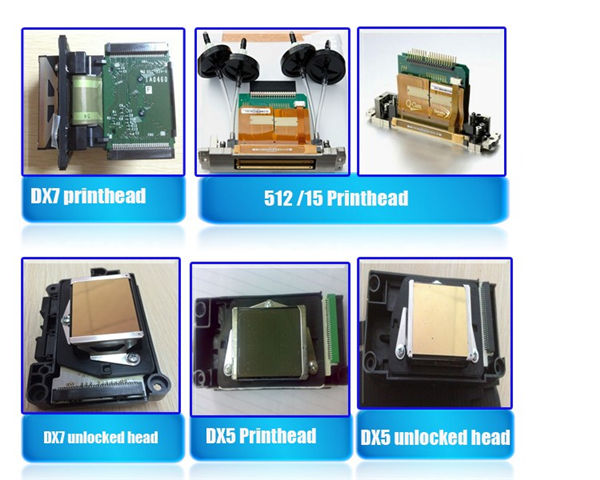

4.Printheads
1)Xaar 126/40PL, 128/80PL, 128/200PL, 128/360PL
2)KM512/42PL/14PL, KM1024
3)SPT510/35PL/50PL, SPT255 80PL, SPT1020/35PL
4)Skywalker-128, Polaris 512/15PL
5.Spare parts(normal & special accessories)
Ink pumps, Filters, Ink cartridge, Cleaning valves, Solenoid valves, Dust-free products,Rasters(encoder strip),Data cables,Belts,Damper,Wiper,Blade,Capping station,Motors,motor gear,pulley,etc.

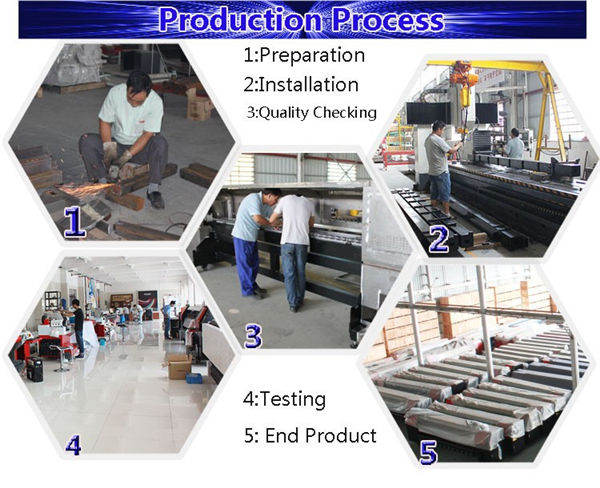

Production Flow


Garancija i servis


How about the warranty & after sales service?
1) 12 months trouble-free warranty . (excepting Print head & Ink through System)
2) Complete English video and user manuals to guide you easily install,
operate and maintain the plotter.
3) Free training when you come to our company (installation, operation, and maintenance).
4) 24hours online technical support .
5) Abundant supply of spare parts for printer and can send to you as soon as possible
6) We can send technicians to your country if you need.
7) You could let your clients contact us for maintenance.

FAQ


1.Q: what is the minimum order ?
A: one set.

2.Q: Shall I get sample to test the quality and market before ordering ?
A: Sure ,printer Sample order to test the quality and market is welcomed ,but sample fee need to be paied by your side. but we can provide you free printing sample like Vinyl, flex banner

3.Q:What kind of shipping method available ?
A:DHL/Air cargo/China post are available.

4.Q: If I buy the goods and don't know how to use it ,what should I do ?
A: We offer free traing and online technical support. Please feel free to contact us ,we have prifessional engineer to teach you how to use it.

5. Q: what is the payment term?
A: 30% in advance to produce. 70% payment after you check the goods.
